Description:
The fixed mine car consists of cart box, frame, coupling, bumper and axle, and wheels. The fixed type mining car has the characteristics of simple structure, sturdy and durable, small drag coefficient, large carrying capacity and convenient maintenance. The cart box is unloaded by car dumper machine and the fixed mine car can be pulled by a locomotive or a hoist. Compared with the Bucket-tipping Mine Car, it is necessary to use other equipment to perform the turning work when unloading.
Model: MGC1.1-6A, MGC1.1-6B, MGC1.7-6A, MGC1.7-6B, MGC1.7-9, MGC3.3-9
Specifications:
| Model | Volume(m3) | Loading(t) | Maximum load(t) | Gauge | Wheelbase | Wheel diameter | Traction height | Outer width of axle | Buffer form | Allowable traction(KN) | Weight(KG) |
| MGC1.1-6A | 1.1 | 1 | 1.8 | 600 | 550 | 300 | 320 | 808 | Single Spring | 58.8 | 610 |
| MGC1.1-6B | 1.1 | 1 | 1.8 | 600 | 550 | 300 | 320 | 808 | Double Spring | 58.8 | 610 |
| MGC1.7-6A | 1.7 | 1.5 | 2.7 | 600 | 750 | 300 | 320 | 828 | Single Spring | 58.8 | 740 |
| MGC1.7-6B | 1.7 | 1.5 | 2.7 | 600 | 750 | 300 | 320 | 828 | Double Spring | 58.8 | 760 |
| MGC1.7-9 | 1.7 | 1.5 | 2.7 | 900 | 750 | 350 | 320 | 1150 | Double Spring | 58.8 | 980 |
| MGC3.3-9 | 3.3 | 3 | 5.3 | 900 | 1100 | 350 | 320 | 1150 | Double Spring | 58.8 | 1320 |
Application:
It is mainly used for transporting coal, gangue and materials in coal mine. At the same time, it is also a kind of short-distance transportation equipment for other non-metallic ore, bridge construction, railway engineering, transportation and tunneling and other construction and transportation projects, such as elm sand, gravel and other materials.
Feactures:
1) High reliability;
2) Long service time;
3) Low operational costs;
4) Made by high quality steel;
5) High stress area welds eliminated;
6) Mass and section thickness optimized;
7) Simplified state of the art mainframe and easy to operate

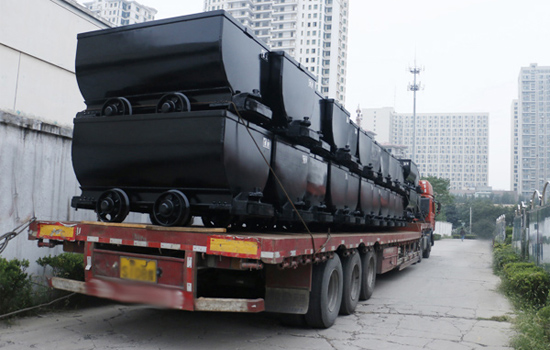

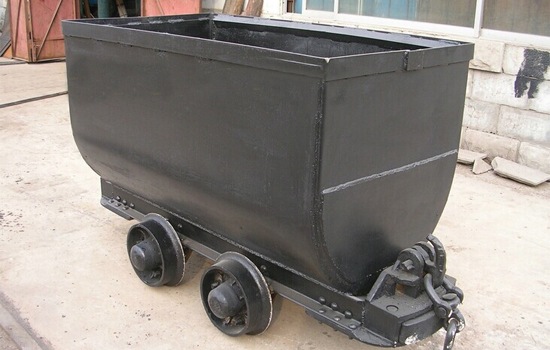

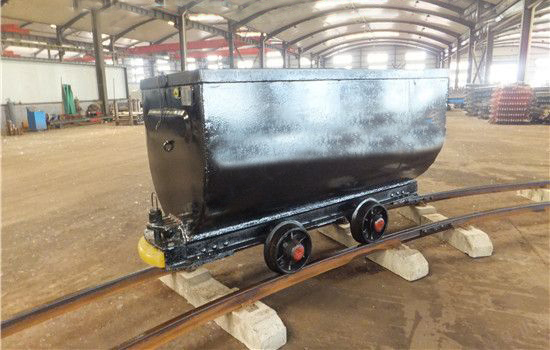

Product Image:
